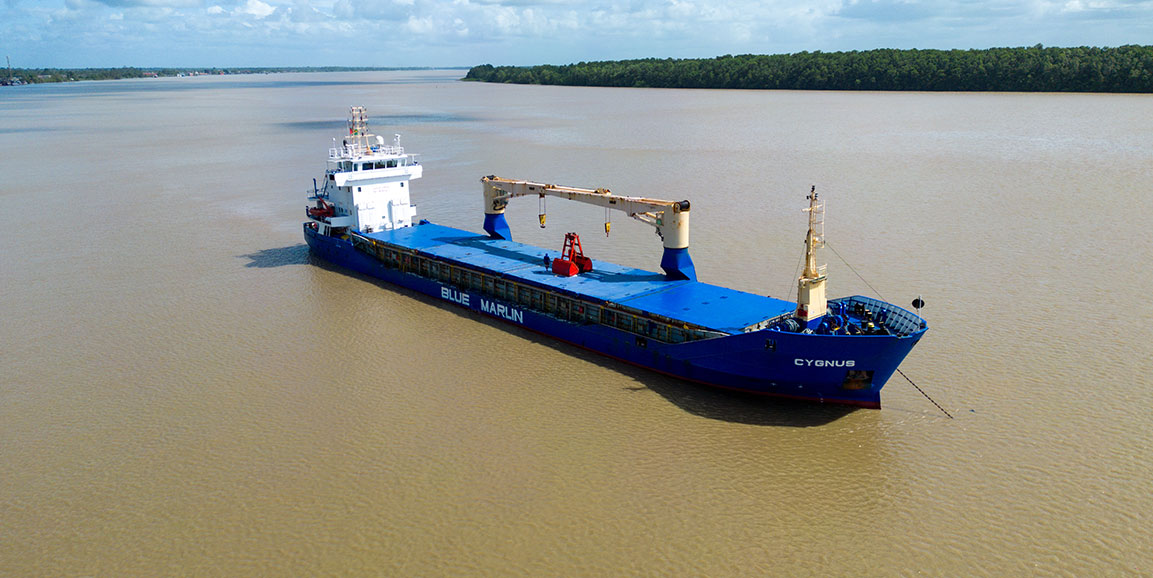

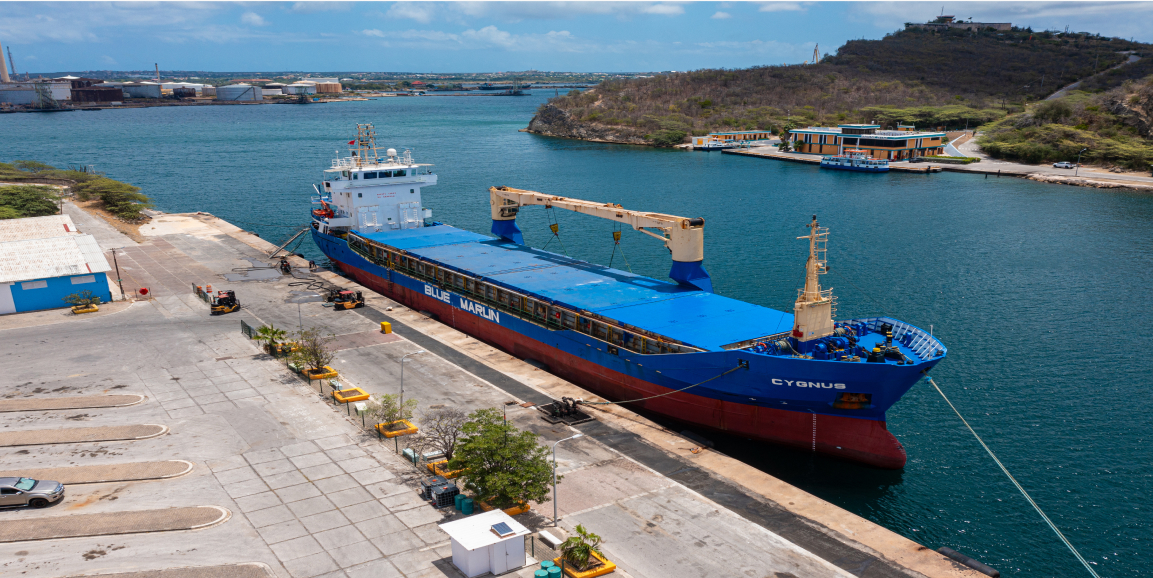

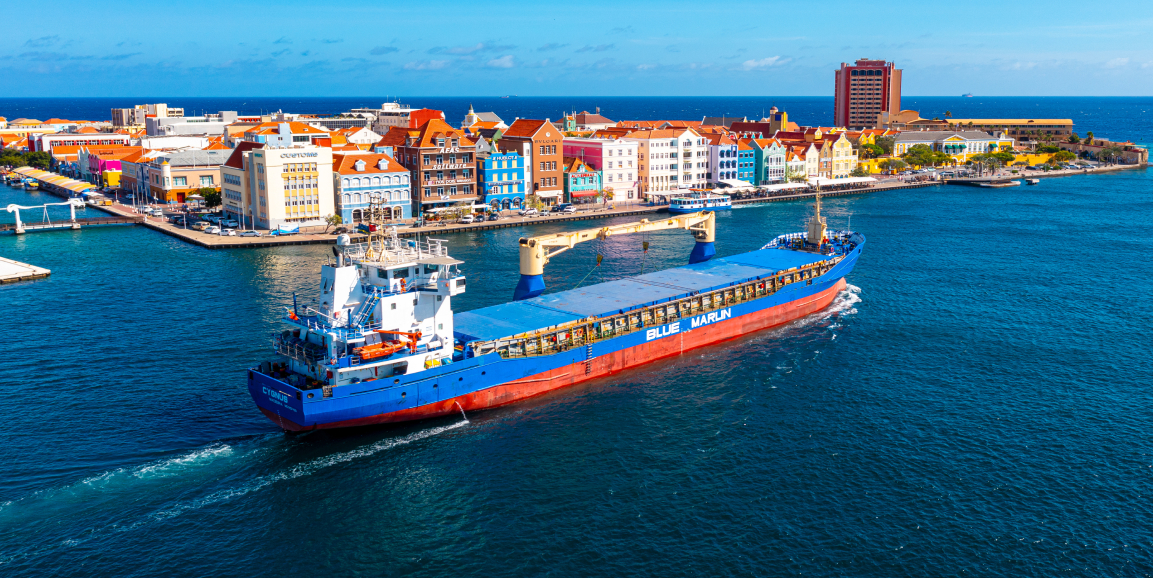

MV Cygnus
3380 dwat – 2 cranes of 30 tons each – Built 2000
Type:
MPP Singledecker, box with 2 bulkheads
Class:
RINA
Register tonnage:
2528 GT / 1372 NT
Dimensions:
Length over all: 86,57 mtr. Beam: 12,80 mtr
Deadweight capacities:
3380 dwat on 5,55 mtr draft
Cubic capacities in holds:
163,000 grain / bale
Engines:
SKL 2100 KW / 2816 HP
Gear:
2 cranes of 30 tons each
Cargo hold / hatch:
1 hold/hatch: 56,55 x 10,20 x 8,13 mtr
Deck strength:
20 mt per m2 on tanktop, 1,6 mt per m2 on hatch
Container capacity:
164 TEU whereof 108 TEU in hold and 56 TEU on deck
Tank capacity:
175 mt gasoil
Equipment:
Vessel is fitted with 2 movable bulkheads
IMO class fitted
Electrical ventilation six-fold per hour
Bowthruster
Blueprint:
